How to change from FIT to FAT mode in Sundray XAP-610-S

How to change from FIT to FAT mode in Sundray XAP-610-S

1. Connect the network cable directly from your PC to the device

Default IP of the device is 192.168.100.1

2. Configure the IP of your PC with similar IP range with the device
3. Download the troubleshooting tool here.

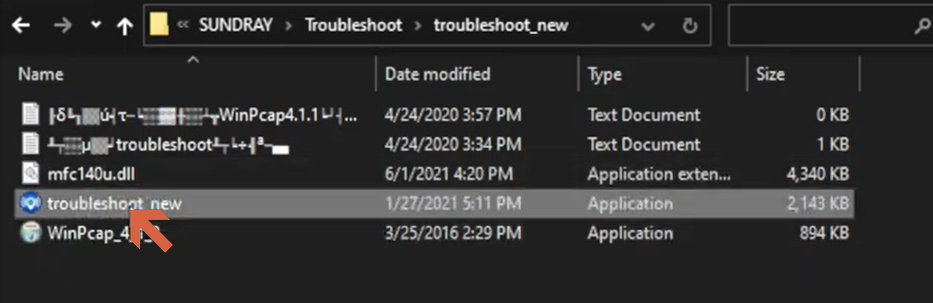

4. Extract the tool and run the troubleshooter

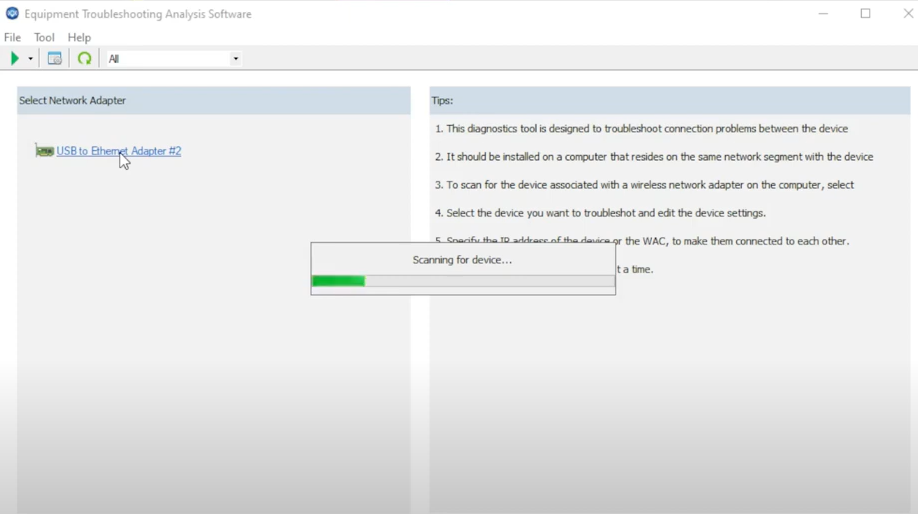

5. Click the network adapter where your Sundray device is connected and wait until the scanning was finish.

6. The window below will appear ince the scanning was finished

7. Select the device and select Tool->Change Mode

8. Change with the following values below

9. Enter the password to connect to device, the default is "admin"

10. Click refresh button to reflect the changes (wait for a while beause this might take a while)

11. Go to your terminal and try to "ping" the default IP of the device

12. Go to your browser and browse the IP of the device, below screen should appear.

Default password is "admin"

Congratulations! you sucessfully change the mode of your sundray device from FIT to FAT.

How to get the Doctype corresponding table in the database

1. Go to the doctype you need to see corresponding table

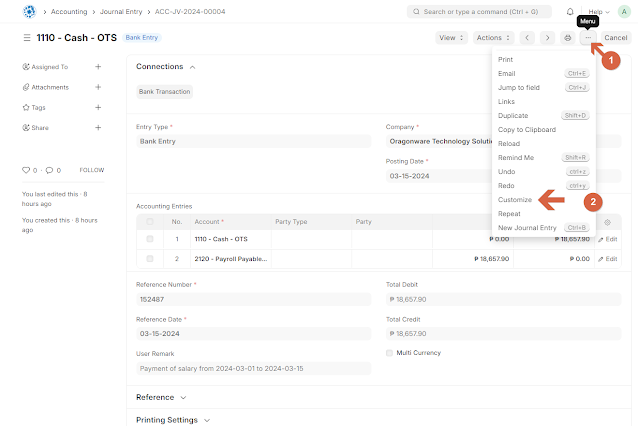

In this example we will use Journal Entry, go to Menu->Customize

Below screen will display after you click the Customized button

Take note of the table name, every master data and transaction data table in the system has the prefix of "tab". The pattern of table name in the system is "tab"+DocType name = `tabJournal Entry`, that's how you get the table name.

Field name is straightforward.

2. To get the child table do the following
